AUTHOR: Kasper Ax
ESR NUMBER: ESR14
INDUSTRIAL PARTNERS: Blumer-Lehmann + Designtoproduction
INSTITUTE: cita

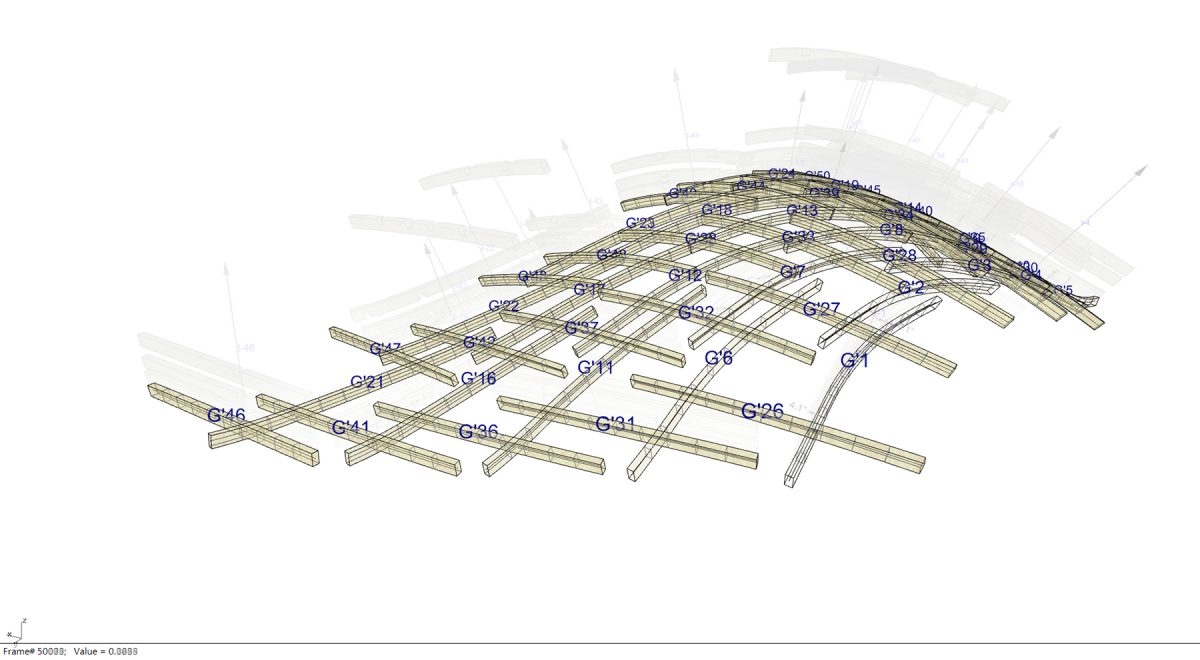

These animations show an initial attempt to set up a definition which is used to simulate and evaluate assembly sequences in a given structure. It calculates the appropriate insertion direction for each element based on sequence, and proposes a possible joint configuration. The model is based on the idea of ‘assembly-by-disassembly’ and ‘Motion space’ (M-Space) which are both common concepts from the field of mechanical engineering.
